Ice-Class Propeller

This sample illustrates how a fully-parametric ice-class marine propeller can be modeled using the Advanced Propeller Workflow.

Load Model

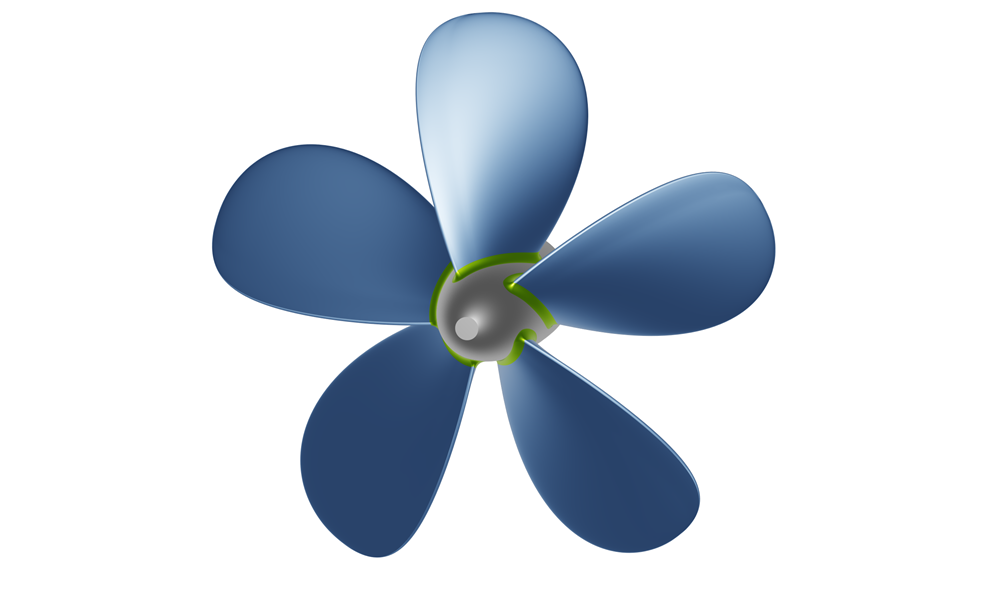

This type of propeller is called ice-class, reinforced for ice-breaking operations. It features enhanced durability with long, thick blade sections, a low skew angle and a backward rake to withstand the harsh conditions of ice navigation.

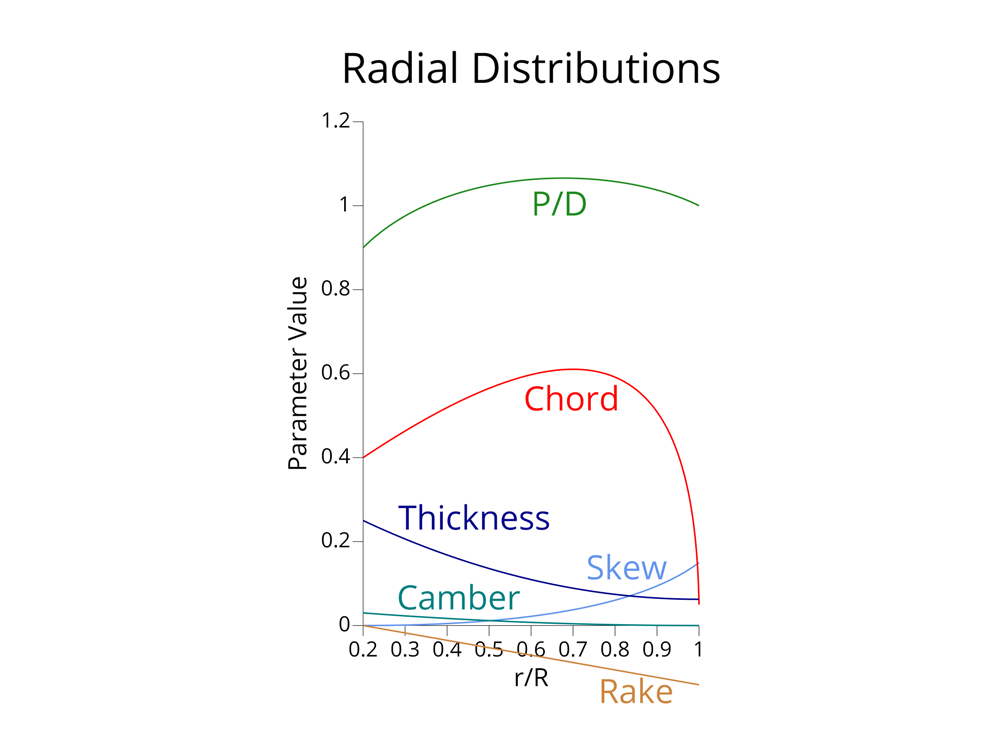

Below, the Radial Distributions of the baseline design for this propeller type are shown.
