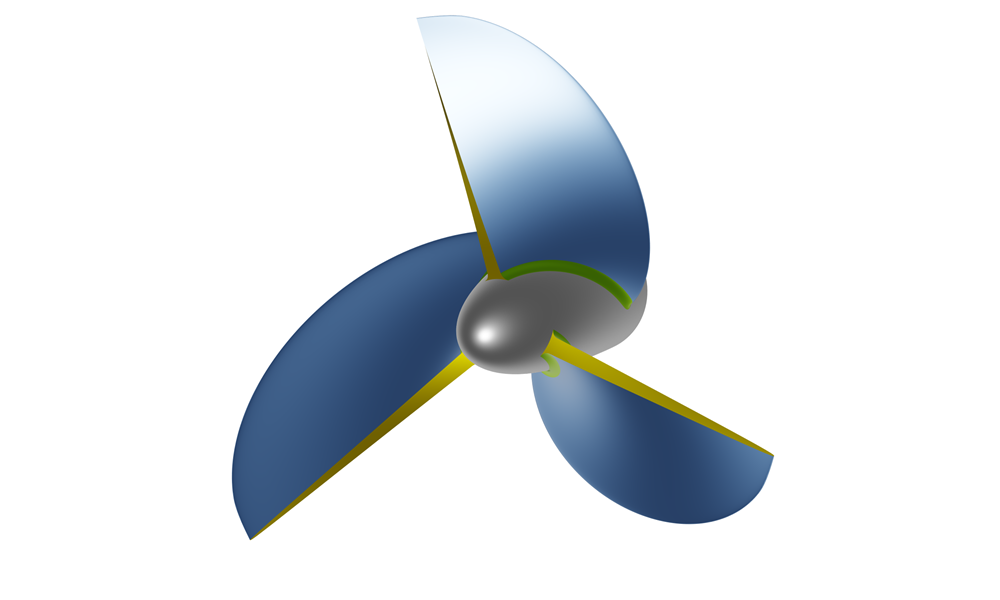

Surface-Piercing Propeller

This sample illustrates how a fully parametric surface-piercing marine propeller can be modeled using the Advanced Propeller Workflow.

Load Model

This type of propeller is called surface-piercing because it is partially submerged in water, with the other part above the water level. These propellers, typically three-bladed, are used for high-speed applications and typically feature a profile with a blunt trailing edge, where the maximum thickness is usually located. Additionally, they have a sharp leading edge.

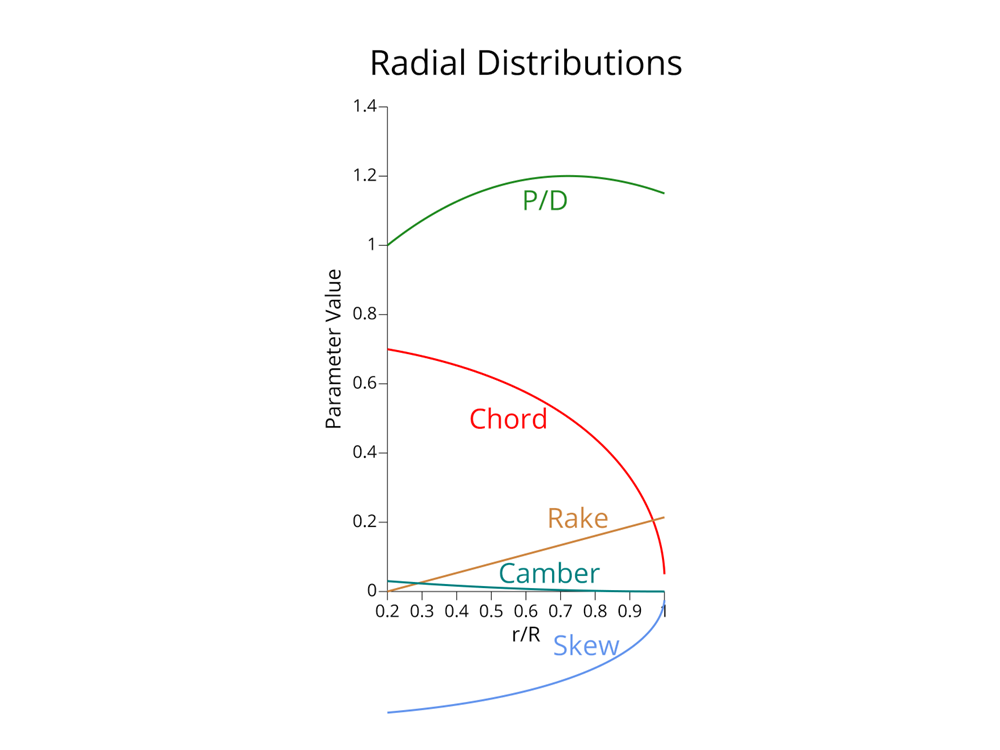

Below, the Radial Distributions of the baseline design for this propeller type are shown.
