Controllable Pitch Propeller

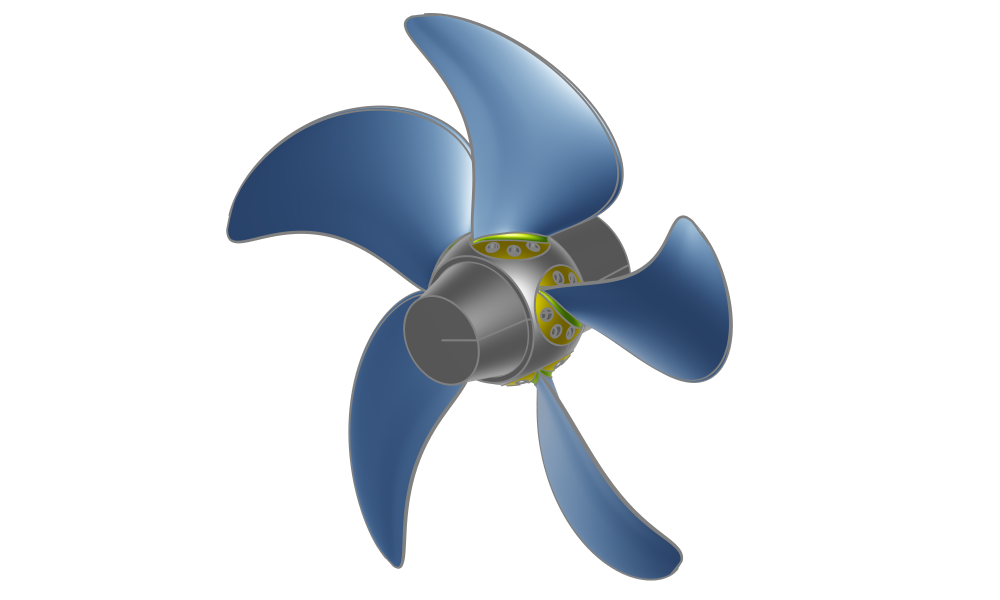

This sample illustrates how a fully parametric Controllable pitch marine propeller can be modeled using the Advanced Propeller Workflow.

Load Model

Controllable Pitch Propeller

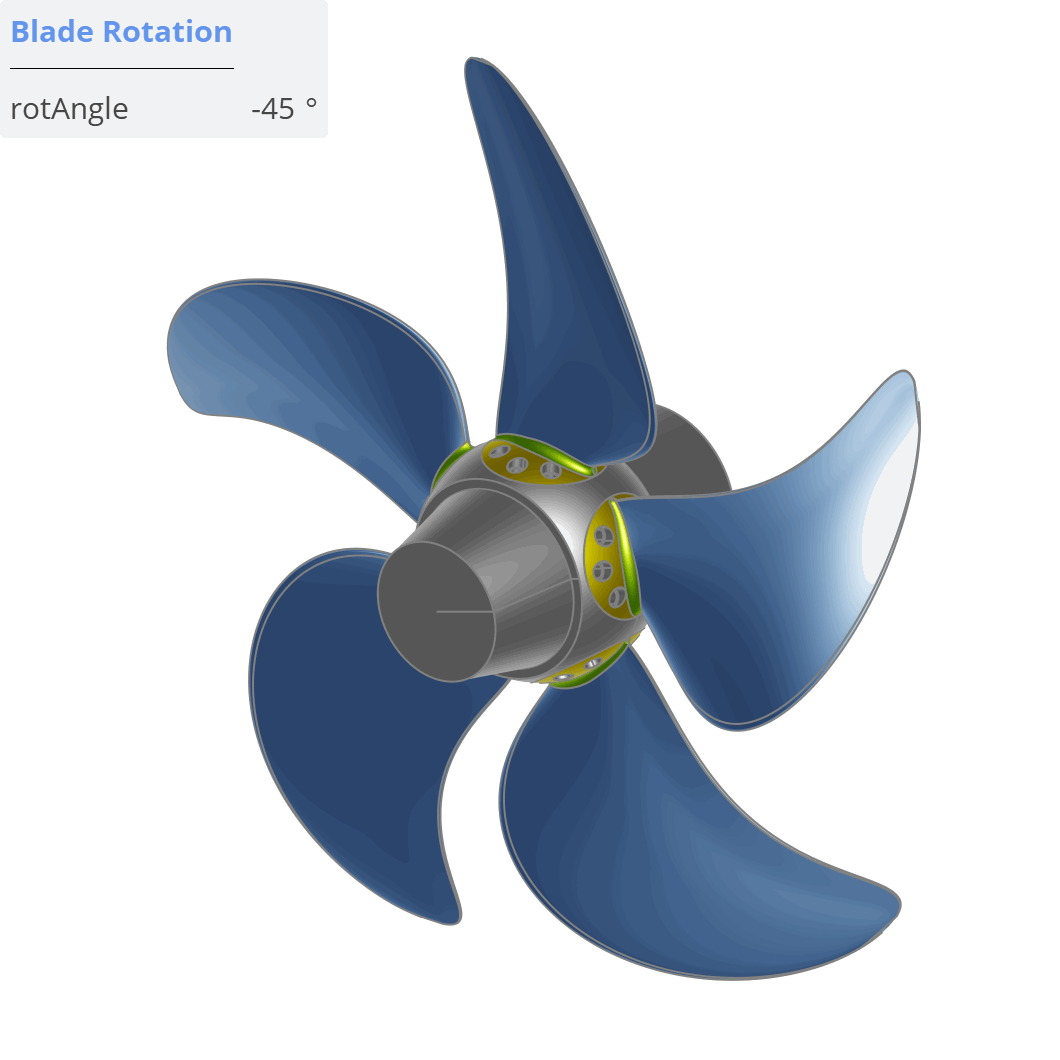

This type of propeller is called Controllable Pitch Propeller (CPP) because the pitch of the propeller can be adjusted via a mechanism that rotates the blade. This allows for controlling the angle of attack of the incoming flow. The animation below shows the blade rotating from -45° to 45°, controlled by the rotAngle parameter.

Controllable Pitch Propeller Animation

Additionally, the NACA 66 a = 0.8 mod profile is used, and besides controlling the pitch through blade rotation, the design pitch point can also be adjusted via the Design Variables of the Radial Distributions.

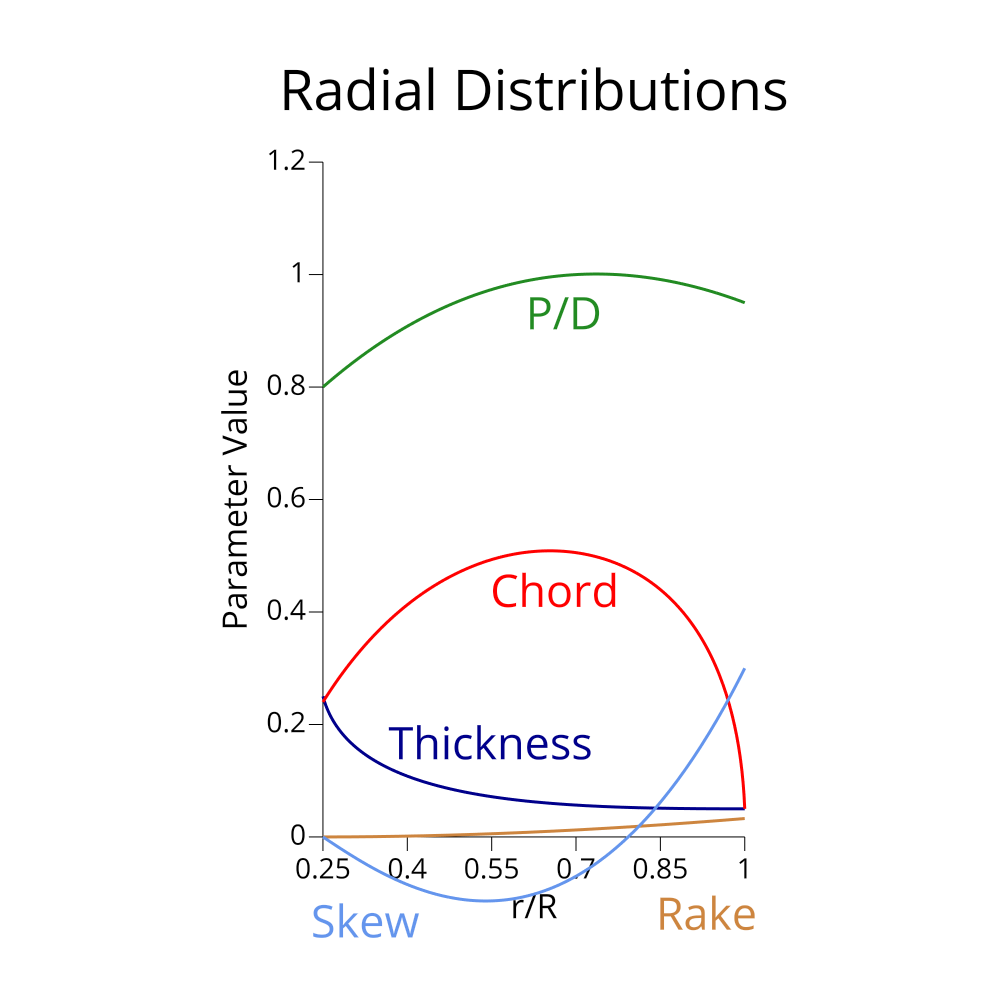

Below, the Radial Distributions of the baseline design for this propeller type are shown.

Controllable Pitch Propeller Functions
