Analysis Tools for Imported Blades

TurboThis functionality requires the Turbo add-on to be enabled. 5.2.0This functionality requires CAESES version 5.2.0 or later.

Quickly analyze any imported or existing blade geometry with the analysis tools in CAESES. You can now easily extract the mean camber surface, determine the blade and wrap angle (beta/theta) distributions, or transform the 3D edges to the 2D meridional plane. This toolkit allows you to quickly build a fully-parametric model from imported geometries. Follow the detailed tutorial video here:

Watch Tutorial Video

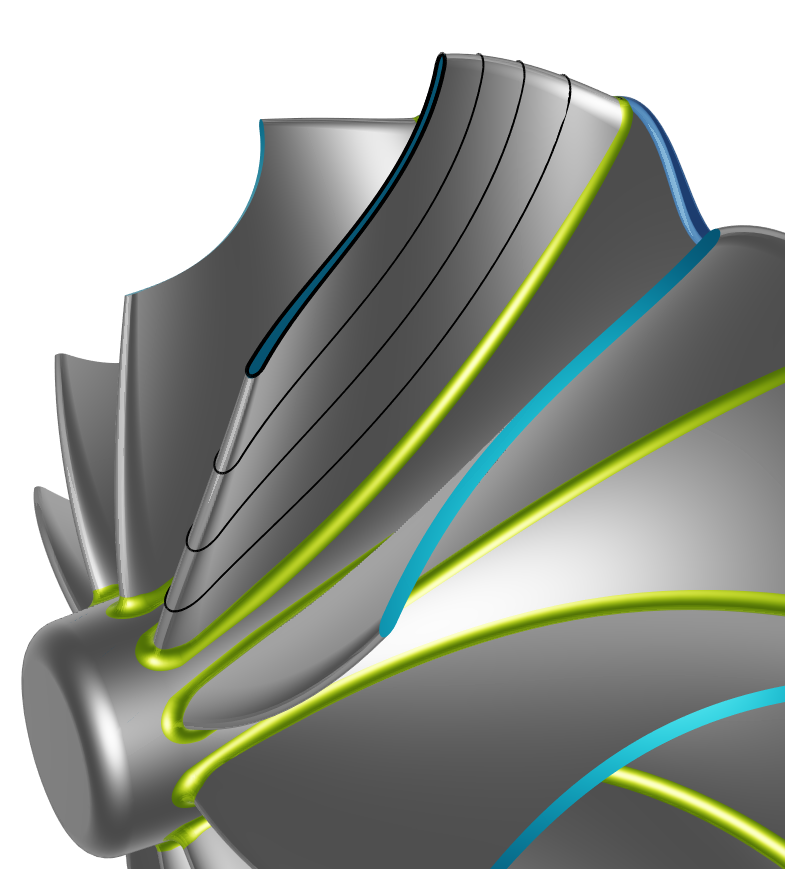

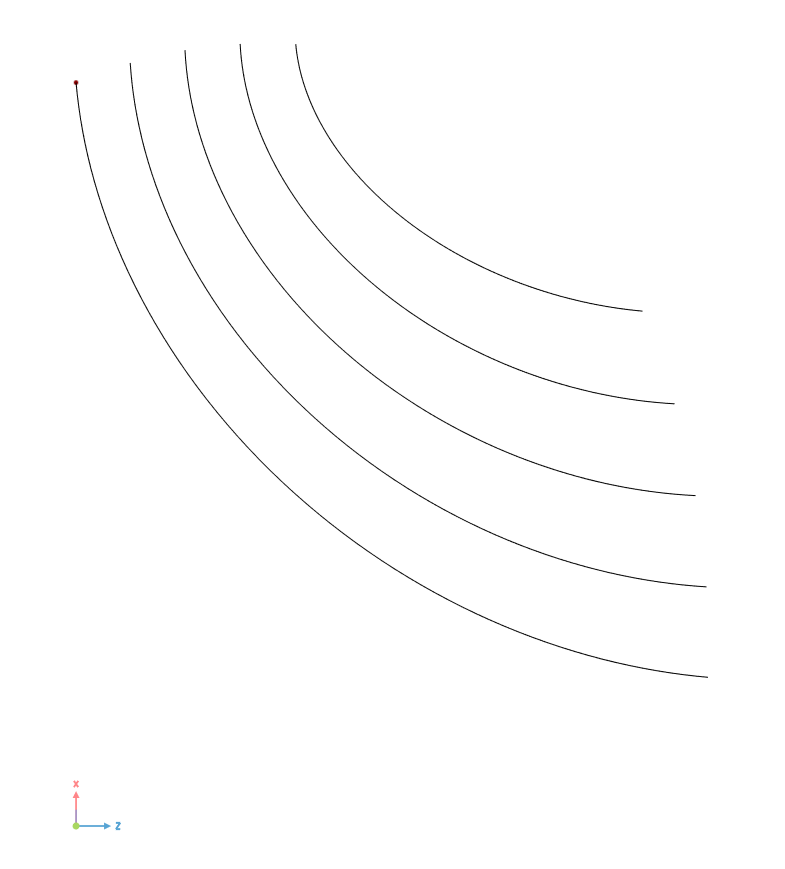

Section AnalysisMeridional Contours
!analysis tools!meridional contour
Final Setup

CAESES Project File​

If you want to take a look at the finalized model you can find the resulting CAESES project file analysis-tools-imported-blades.cdb here:

Load Analysis Model
